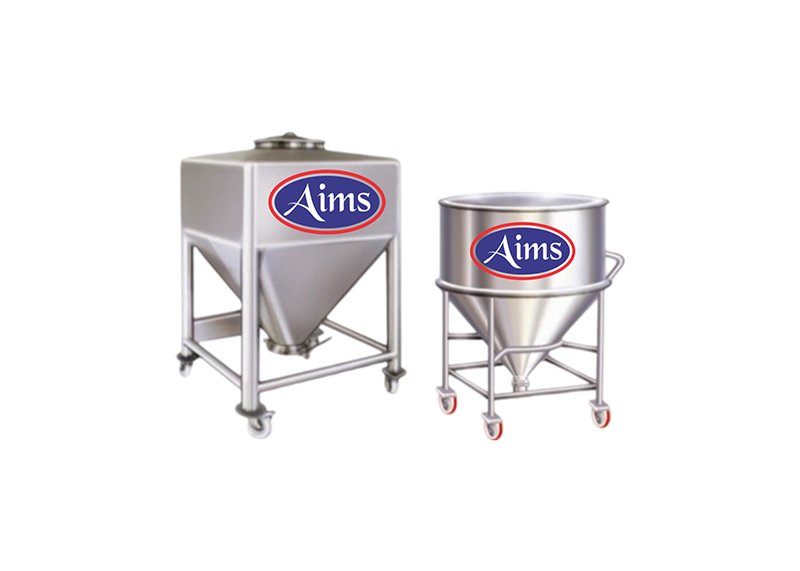

Bin Blender Conta Blender

  • Home
  • Bin Blender Conta Blender

Salient Features

  • Ability To Handle Multiple Sizes Of IBC
  • Ability To Obtain A Homogeneous Blend Of Multiple Ingredients In An IBC Without Mechanical Intrusion.
  • Transfer Of Product From One To Another Machine
  • Containment And Ergonomic Situations Are Greatly
  • The Unique Clamping Arm Is Simple, Hygienic
  • In Compliance With cGMP Guidelines
  • Effective Blending With Help Of Mixing
  • Quick Dismantling Of Mixing Baffles For Easy To Clean Bins
  • Fully Automatic Operation Through Programmable Logic Controller (Optional)
  • Flameproof Construction (Optional)
  • AC VFD Variable Frequency Drive (Optional)
  • Pneumatic Loading System (Optional)
MODEL AIMS–BB–50 AIMS–BB–100 AIMS–BB–200 AIMS–BB–300 AIMS–BB–500 AIMS–BB–800 AIMS–BB–1000 AIMS–BB–1200 AIMS–BB–1500 AIMS–BB–2000
Gross Capacity (Liter) 50 Liter 100 Liter 200 Liter 300 Liter 500 Liter 800 Liter 1,000 Liter 1,200 Liter 1,500 Liter 2,000 Liter
Working Capacity (Liter) 35 Liter 70 Liter 140 Liter 210 Liter 350 Liter 560 Liter 700 Liter 840 Liter 1,050 Liter 1,400 Liter
Machine RPM (Max) 20 RPM 28 RPM 16 RPM 24 RPM 16 RPM 16 RPM 16 RPM 16 RPM 12 RPM 12 RPM
Discharge Port Diameter Ø 3" Ø 4" Ø 6" Ø 6" Ø 8" Ø 8" Ø 10" Ø 10" Ø 10" Ø 12"
Electric Motor (HP / kW) 1 HP / 0.7 kW 2 HP / 1.5 kW 3 HP / 2.3 kW 3 HP / 2.3 kW 5 HP / 3.7 kW 7.5 HP / 5.5 kW 10 HP / 7.5 kW 12.5 HP / 9.3 kW 15 HP / 11.2 kW 20 HP / 14.5 kW
Electrical Power Supply 230 Volts ± 10% Or 440 Volts ± 10% / 50 Hz Or 60 Hz / 3 Φ Phase / A.C. Power Supply
