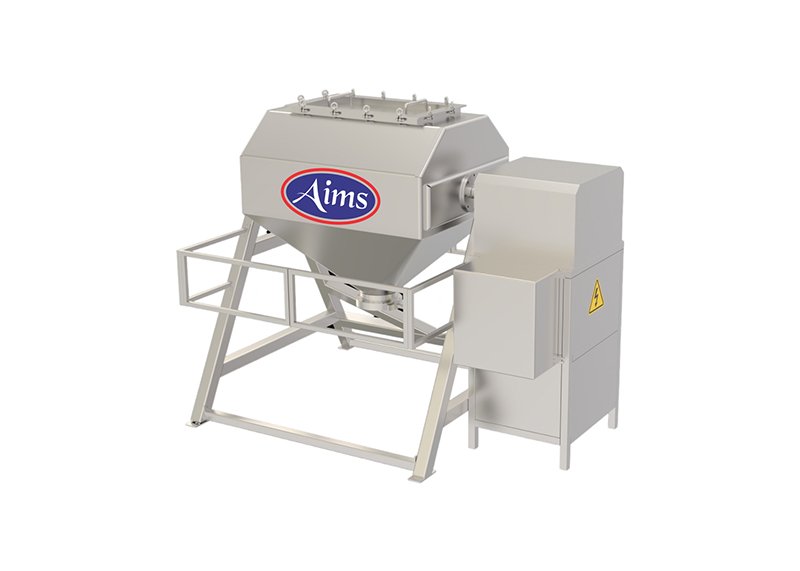

Octagonal Blender

Description

  • Octagonal Blender, Due To Its Octagonal Shape Is Designed To Process A Larger Volume Of Material.
  • It Occupies Less Space Compared To Other Similar Blenders Like Double Cone & ‘V’ Blender.
  • Power Consumption Is Also Less.
  • The Blending Takes Place At A Low Speed During Operation.
  • It Is Well Balanced Even In Higher Capacities.
  • It Has Removable Type Baffles Mounted On A Rectangular Shell.
  • The Important Feature Of The Machines Is Easy To Clean In Place.
  • AIMS Is A Prominent Manufacturer Of Octagonal Blender Machine.
  • We Are Committed To Manufacturing High-Quality, Innovative Products With The Customer's Needs In Mind.
  • The Company Has Grown Exponentially As An Octagonal Blender Manufacturer Over The Past Few Years And Will Continue To Be An Industry Leader For Years To Come.

Salient Features

  • In Compliance With cGMP Guidelines
  • Effective Blending With Help Of Mixing Baffles.
  • Quick Dismantling Of Mixing Baffles For Easy To Clean Bins And Baffles.
  • Fully Automatic Operation Through Programmable Logic Controller (Optional)
  • Flameproof Construction (Optional)
  • ACVFD As An Optional Feature
  • Pneumatic Loading System (Optional)
  • Available for smaller volume capacity or Pilot Scale volume capacity
  • Effective blending with help of mixing baffles.
  • Easy to clean.
  • PLC / HMI System (Optional)
  • Contact Parts Made From SS 316 & Non-Contact Parts Made From SS 304

Technical Specifications

MODEL AIMS–OB–50 AIMS–OB–100 AIMS–OB–200 AIMS–OB–300 AIMS–OB–500 AIMS–OB–800 AIMS–OB–1000 AIMS–OB–1200 AIMS–OB–1500 AIMS–OB–2000
Gross Capacity (Liter) 50 Liter 100 Liter 200 Liter 300 Liter 500 Liter 800 Liter 1000 Liter 1200 Liter 1500 Liter 2000 Liter
Working Capacity (Liter) 35 Liter 70 Liter 140 Liter 210 Liter 350 Liter 560 Liter 700 Liter 840 Liter 1050 Liter 1400 Liter
Machine RPM (Max) 28 RPM 28 RPM 24 RPM 24 RPM 16 RPM 16 RPM 16 RPM 16 RPM 16 RPM 12 RPM
Electric Motor (HP / kW) 1 HP / 0.7 kW 1.5 HP / 1.1 kW 2 HP / 1.5 kW 3 HP / 2.3 kW 5 HP / 3.7 kW 7.5 HP / 5.5 kW 10 HP / 7.5 kW 12.5 HP / 9.3 kW 15 HP / 11.2 kW 20 HP / 15 kW
Electrical Power Supply 230 Volts ± 10% Or 440 Volts ± 10% / 50 Hz Or 60 Hz / 3 Φ Phase / A.C. Power Supply

S. S. 316 Wire Mesh Sieves

  • 4, 6, 8, 10, 12, 14, 16, 20, 24, 30, 40, 50, 60, 80, 100 mm
